The electrode rotation speed is 40000 rpm with high efficiency, stability and reliability that can be completed within one hour per furnace.
High energy density and melting temperature greater than 2600℃, capable of preparing various types of metal powders such as Titanium alloy, special steel,superalloy,high entropy alloy, refractory alloy.
High yield of fine powder, particle size range of 10-200 μm, of which -150 μm yield ≥80%, D50≤63 μm (nickel-based superalloy).

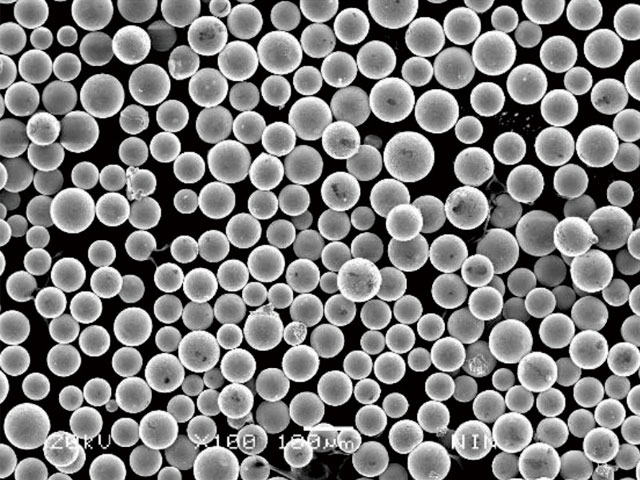

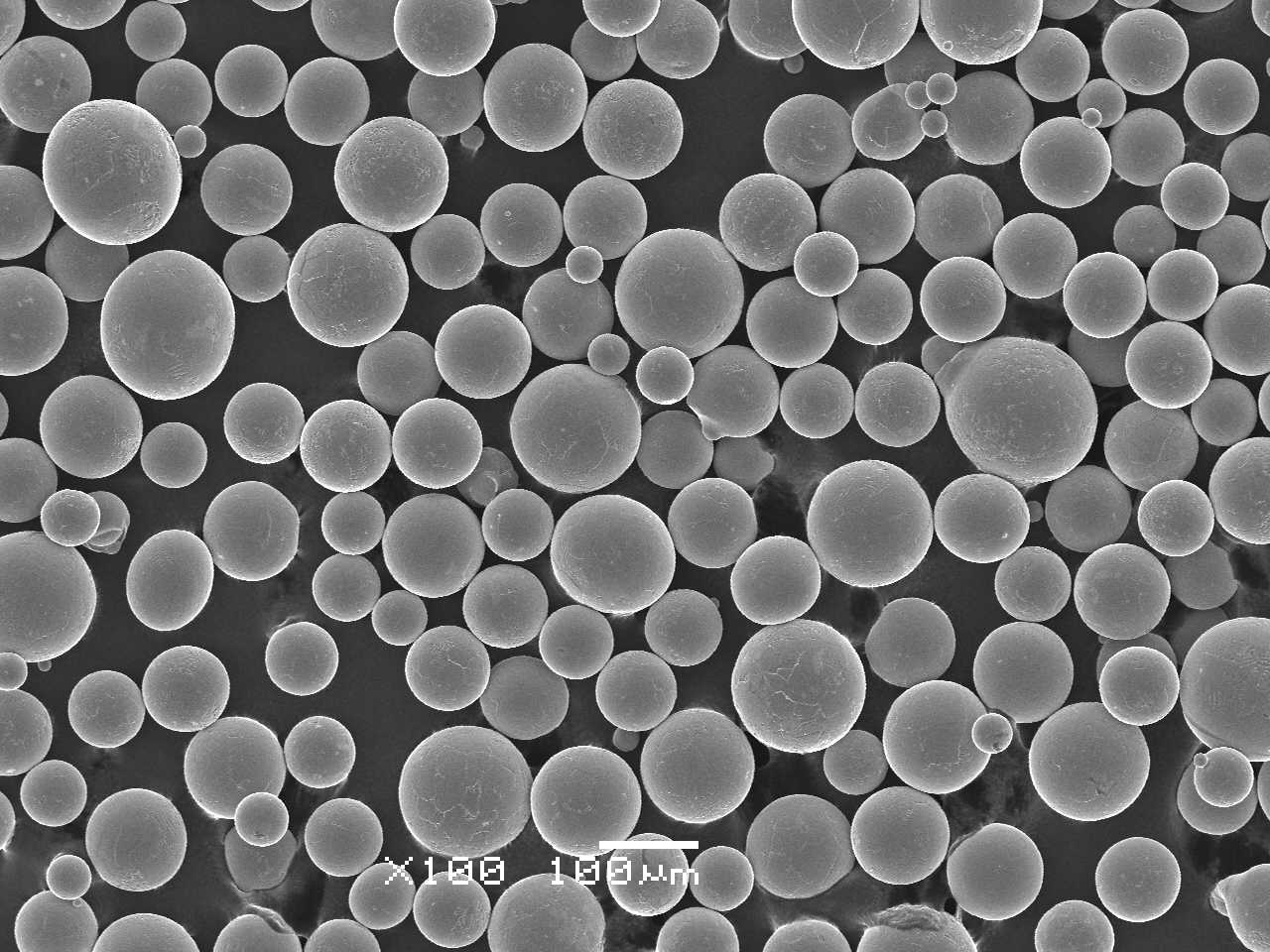

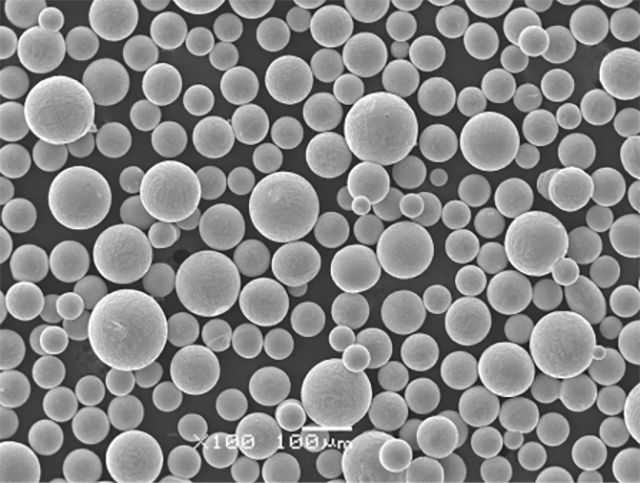

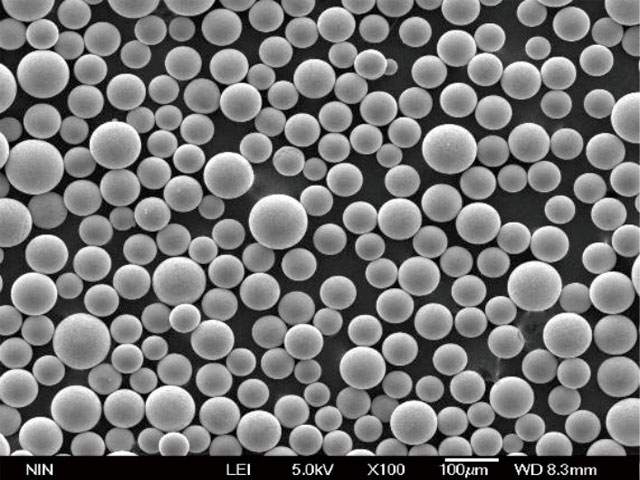

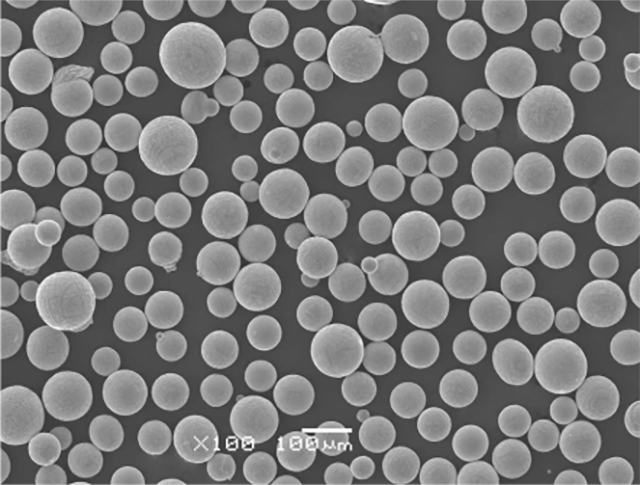

Non-contact powder production in full process, high powder purity, and oxygen increment is less than 100ppm. High sphericity, almost no hollow powder or satellite powder.
The equipment occupies a small area and is easy to install.
Suitable for rapid development and production of small batches, multiple varieties and high-quality spherical metal powders.
Rotation speed | ～40000 rpm |
Diameter of electrodes | Φ30 mm |
Powder morphology | spherical rate≥0.9 |
Particle size | Particle size range 10-200 μm, of which -150 μm yield ≥80%, D50≤63 μm (nickel-based superalloy) |
Oxygen increment | ≤100 ppm（nickel-based superalloy） |
| Production capacity | ≥10 kg/8h（nickel-based superalloy） |
| Ultimate vacuum | ≤5×10-3 pa |
Atmosphere | High purity Ar or He |
Power rating | 120 kW ，3 phase 380±10% V, 50±1 HZ |
Floor space | 4 m×3 m×2.5 m (L×W×H) |
More than 300 types of new material powders,such as Titanium alloy, Aluminum alloy,superalloy,high entropy alloy and refractory alloy,have been customized for users.
